Digital Flatbed Plotter
Model No.-P5035DC
1. Flatbed Design
Feature: Rigid, flat surface for stable and precise cutting.

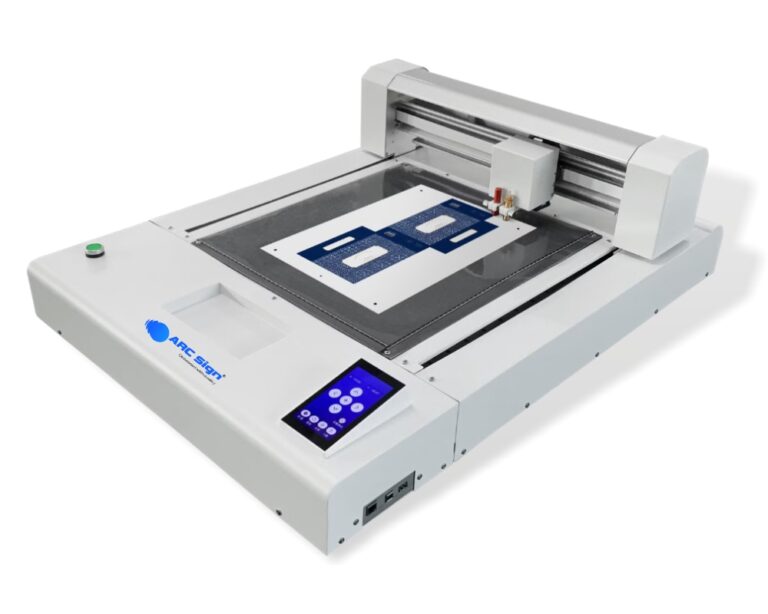

Ideal Image: Top view of a flatbed cutting plotter with media like cardboard or vinyl laid out.
2. High-Precision Cutting
Feature: Cuts with high accuracy (up to ±0.1mm), suitable for intricate designs.
Ideal Image: Close-up of the blade head cutting detailed patterns on material.
3. Multi-Tool Head
Feature: Supports multiple tools like pen, blade, creasing tool, kiss-cut tool.

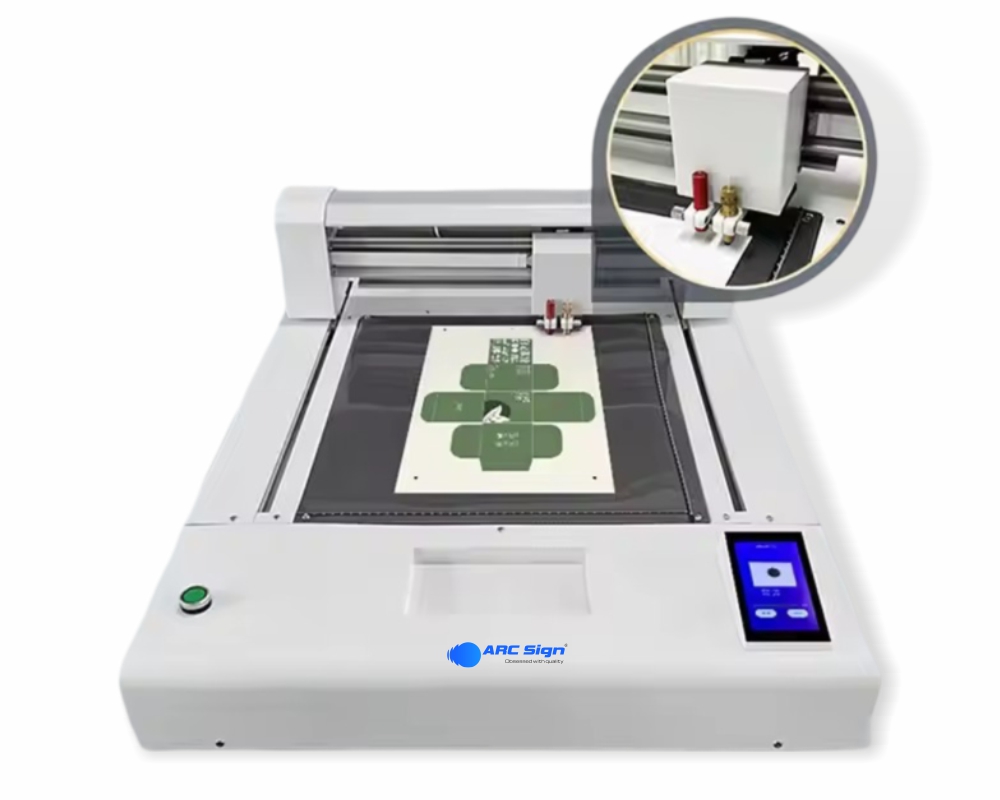

Ideal Image: A multi-head tool system showing blade, pen, and creasing tool.
Flatbed Cutting Plotter – Basic Description
Digital Flatbed Plotter
Model No.-P5035DC
🔹 Key Benefits:
✔ High cutting precision (ideal for complex designs)
✔ No need for dies (perfect for short-run or customized jobs)
✔ Easy to operate via touchscreen or software
✔ Multi-functional head reduces manual work
✔ Stable suction bed for accuracy

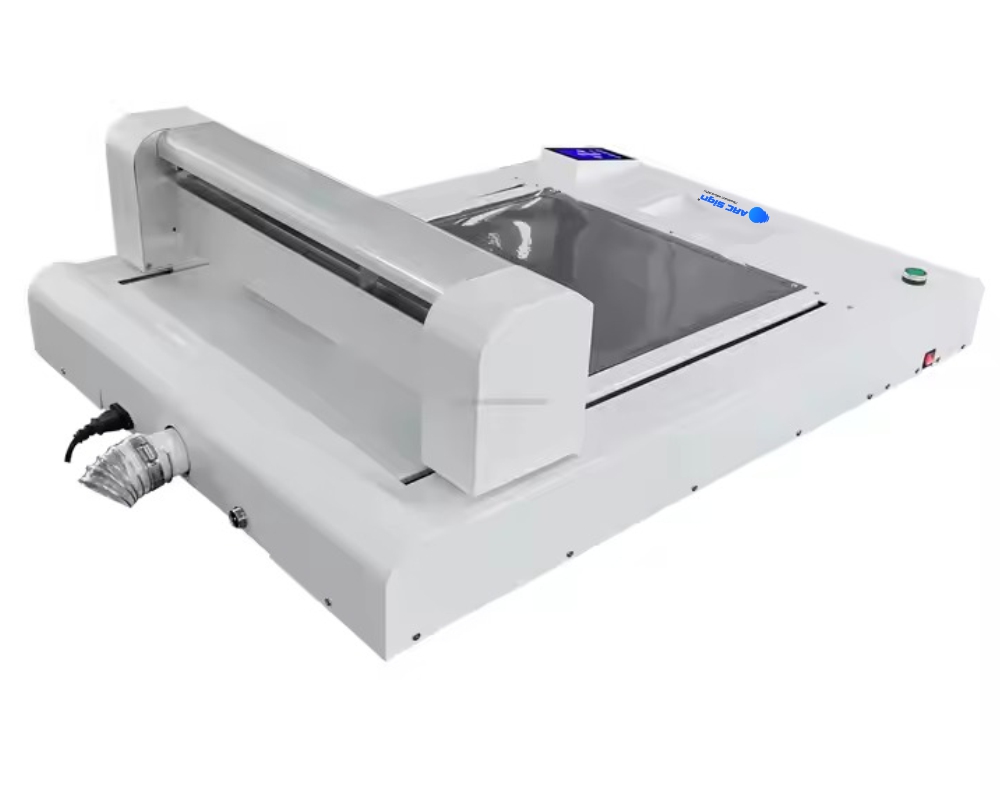

The flatbed cutting plotter precisely cuts and creases various materials like cardboard, vinyl, and foam.
It ensures clean cuts and smooth fold lines, ideal for packaging, signage, and custom designs.
Large Touch Screen Menu
- Intelligent touchscreen for easy operation.
- Equipped with an air pump for strong suction power.
- Automatically detects registration marks and performs contour cutting.
- Large cutting area to meet market demands.
- Cutting and creasing in one step.
Specification
Model-
Cutting Speed-
Cutting Thickness-
Cutting Pressure-
Cutting Material-
Blade-
Scan mark way-
Material Fixing way-
Operation method-
Driver-
P5035DC
1mm/s to 800mm/s
Within 1.2mm
2000g
Can Cut PET, PVC, Cardboard, Sticker, Etc.Dual Blade
Camera scan position system
700W Vacuum adsorption
Flatbed
Stepper motor
Cutting Precision-
Repeatable Precision-
Cutting circe diameter-
linterface-
Compatible software-
Instructor of the Plotter-
CNC panel-
Transmission material-
Operating voltage-
Cutting area-
Machine size-
+/- 0.15mm
< 0.05mm
>1mm
USB/U-disc port/Ethernet port
Signmaster, Al, Autocad, Coreldraw Etc
HPGL compatible format
Multi-language LCD touch Panel
Imported belt
DC220V+-10%, 50HZ
500mm x 350mm
954 * 292 = 694mm
